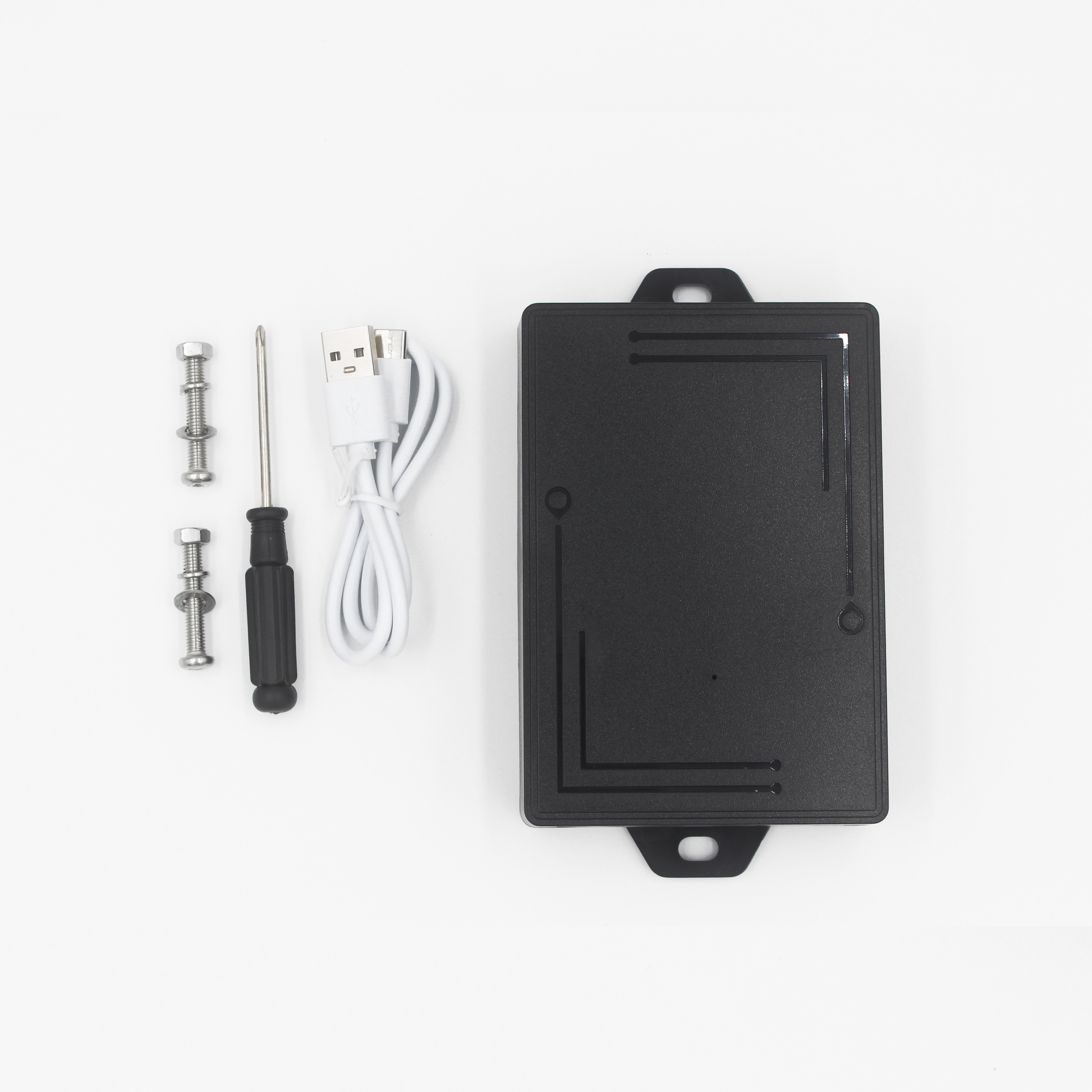

10000mAh Magnetic Asset GPS Tracker

GF60 is a magnetic asset tracker designed for Vehicle financial

loan, Stolen vehicle recovery, Container tracking.

Using the rechareable battery allows for more availability and

better portability. Different working mode for different demand.

The IP67 waterproof rate and removal alert will make the device

a perfect solution for anti-theft of heavy-duty vehicles, goods

and other assets.


Main Functions:

1.Wireless magnetic design, 0 installation.

2.Live positioning and tracking through web platform/APP.

3.Multi-working modes.

4.Anti-tamper alarm

5.Geo-fence/Low battery alarm/Vibration alarm.

6.Remote voice listen-in (optional).

7.Rechargeable Battery.




Project Details


Specs.

Device Size

120*83*29cm

Materials

ABS fireproof material, N54 level strong magnet

Weight

0.23kg

GSM Specification

4G LTE bands

LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66

LTE-TDD B34/B38/B39/B40/B41

2G GSM frequency

850/900/1800/1900MHz

GPRS

Class 12, TCP/IP

Memory

32 + 32 Mb

Phase error

RMSPE<5,PPE<20

Receive sensitivity

Class II RBER2%(-102dBm)

GPS Specification

Chipset

2G version MTK6261(GSM)+AT6558R(GPS)

4G version SIMCom LTE Cat 1 A7670 Series+AT6558R(GPS)

Frequency

GPS L1, 1575.42 MHz C/A code

Channel

66

Location accuracy

<5 meters

Tracking sensitivity

-165dBm

Acquisition sensitivity

-148dBm

TTFF (open sky)

Avg. hot start ≤1sec

Avg. cold start≤32sec

Others

Antenna

Built-in quad band GSM antenna, GPS ceramic antenna

Working current

100uA~100mA

Standby current

60-100uA/h

Battery

Standby time

rechargeable 6000mAh

7~365 days depends on activities and battery capacity

Operating temperature

-20~+70


SMS Command List

SMS Function

SMS Command format

SMS example

★ Please don’t type “+” “space”, password 123456

★ Each SMS must reply“OK” represent command successfully.

Mode 0:

Real-time tracking

MD123456+space+0

MD123456 0

Consume battery fast! Dont send randomly

Mode 1:

Interval mode

MD123456+space+1+space+X(X value: minutes,range 60~1440)

MD123456 1 60

Device will wakeup at every 60minutes

Mode 2:

Default Clock mode
Set time zone firstly

MD123456+space+2+aabb

MD123456 2 1200

Device will wakeup only 1 time at 12:00 everyday, default 12:00 wakeup;

Support 4 clocks max.

Set time zone for clock mode

Timezone123456+space+LocalTimeValue(timezone*60)+0/1

LocalTime value=TimeZone*60

0/1: 0 is for East, 1 is for West

Set +3, send SMS: timezone123456 180 0

Set -8, send SMS: timezone123456 480 1

Set IP Port

adminip+password+space+IP Address+space+port number+ space+0

adminip123456 www.gps2828.com 7018 0

Set APN

apn123456+space+LocalApn+space+ApnName+space+ApnPassword

apn123456 internet

Set Time Interval

ITV123456+space+time interval(s)

If 60s , send SMS: ITV123456 60

Restart device

reset123456

Device will restart

Check device status

check123456

check GPS GSM status

Set factory mode

begin123456

Device will restart and erase settings

Anti-Temper alarm

Device will send one alarm to server via light sensor
