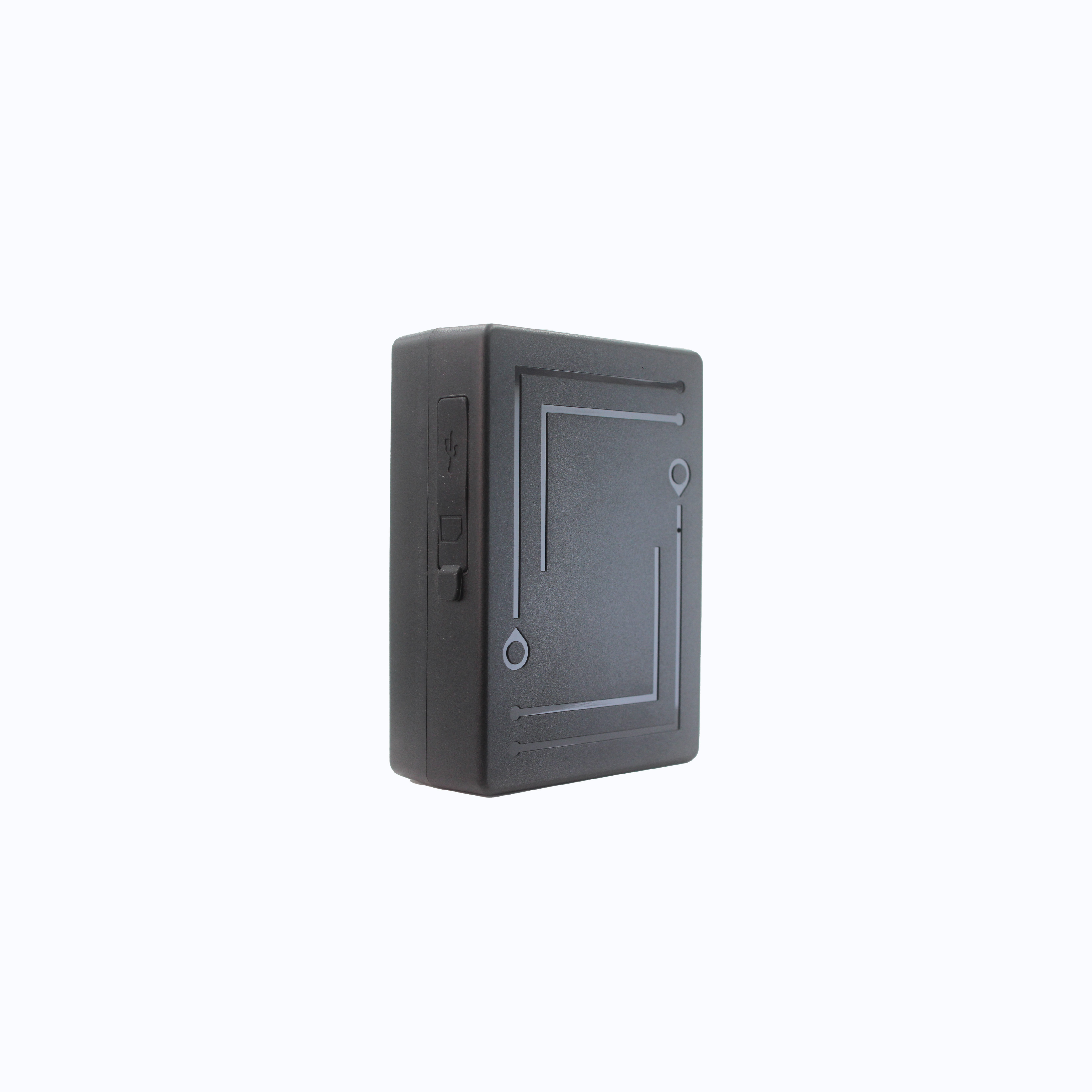

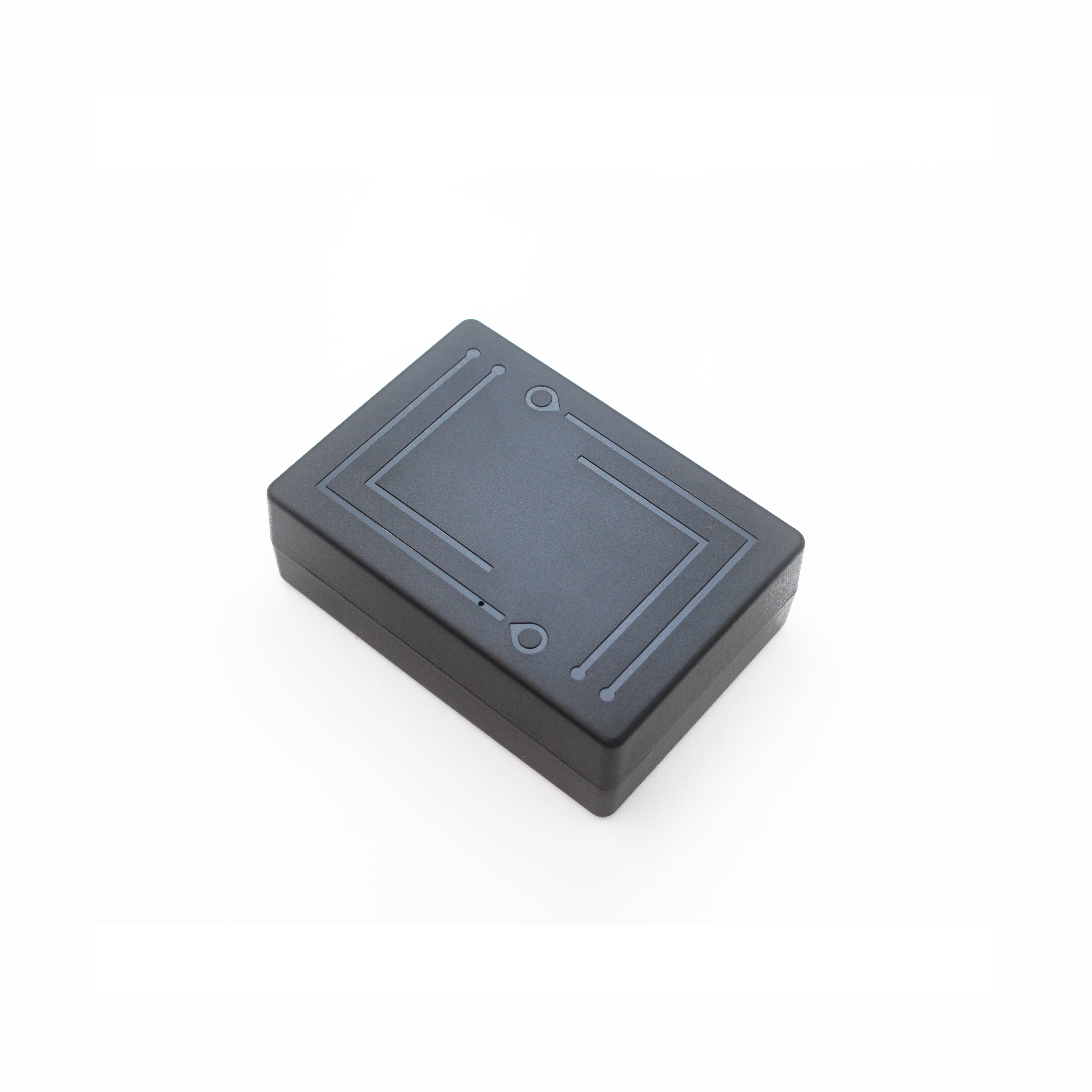

GF50 is a magnetic asset tracker designed for Vehicle financial
loan, Stolen vehicle recovery, Container tracking.
Using the rechareable battery allows for more availability and
better portability. Different working mode for different demand.
The IP67 waterproof rate and removal alert will make the device
a perfect solution for anti-theft of heavy-duty vehicles, goods
and other assets.
Main Functions:
1.Wireless magnetic design, 0 installation.
2.Live positioning and tracking through web platform/APP.
3.Multi-working modes.
4.Anti-tamper alarm
5.Geo-fence/Low battery alarm/Vibration alarm.
6.Remote voice listen-in (optional).
7.Rechargeable Battery.
Specs.
Device Size | 80*56*27cm |
Materials | ABS fireproof material, N54 level strong magnet |
Weight | 0.23kg |
GSM Specification | |
4G LTE bands | LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE-TDD B34/B38/B39/B40/B41 |
2G GSM frequency | 850/900/1800/1900MHz |
GPRS | Class 12, TCP/IP |
Memory | 32 + 32 Mb |
Phase error | RMSPE<5,PPE<20 |
Receive sensitivity | Class II RBER2%(-102dBm) |
GPS Specification | |
Chipset | 2G version MTK6261(GSM)+AT6558R(GPS) 4G version SIMCom LTE Cat 1 A7670 Series+AT6558R(GPS) |
Frequency | GPS L1, 1575.42 MHz C/A code |
Channel | 66 |
Location accuracy | <5 meters |
Tracking sensitivity | -165dBm |
Acquisition sensitivity | -148dBm |
TTFF (open sky) | Avg. hot start ≤1sec |
Avg. cold start≤32sec | |
Others | |
Antenna | Built-in quad band GSM antenna, GPS ceramic antenna |
Working current | 100uA~100mA |
Standby current | 60-100uA/h |
Battery Standby time | rechargeable 6000mAh 7~365 days depends on activities and battery capacity |
Operating temperature | -20℃~+70℃ |
SMS Command List
SMS Function | SMS Command format | SMS example | ||
★ Please don’t type “+” “space”, password 123456 ★ Each SMS must reply“OK” represent command successfully. | ||||
Mode 0: Real-time tracking | MD123456+space+0 | MD123456 0 Consume battery fast! Don’t send randomly | ||
Mode 1: Interval mode | MD123456+space+1+space+X(X value: minutes,range 60~1440) | MD123456 1 60 Device will wakeup at every 60minutes | ||
Mode 2: Default Clock mode | MD123456+space+2+aabb | MD123456 2 1200 Device will wakeup only 1 time at 12:00 everyday, default 12:00 wakeup; Support 4 clocks max. | ||
Set time zone for clock mode | Timezone123456+space+LocalTimeValue(timezone*60)+0/1 | LocalTime value=TimeZone*60 0/1: 0 is for East, 1 is for West Set +3, send SMS: timezone123456 180 0 Set -8, send SMS: timezone123456 480 1 | ||
Set IP Port | adminip+password+space+IP Address+space+port number+ space+0 | |||
Set APN | apn123456+space+LocalApn+space+ApnName+space+ApnPassword | apn123456 internet | ||
Set Time Interval | ITV123456+space+time interval(s) | If 60s , send SMS: ITV123456 60 | ||
Restart device | reset123456 | Device will restart | ||
Check device status | check123456 | check GPS GSM status | ||
Set factory mode | begin123456 | Device will restart and erase settings | ||
Anti-Temper alarm | Device will send one alarm to server via light sensor |
