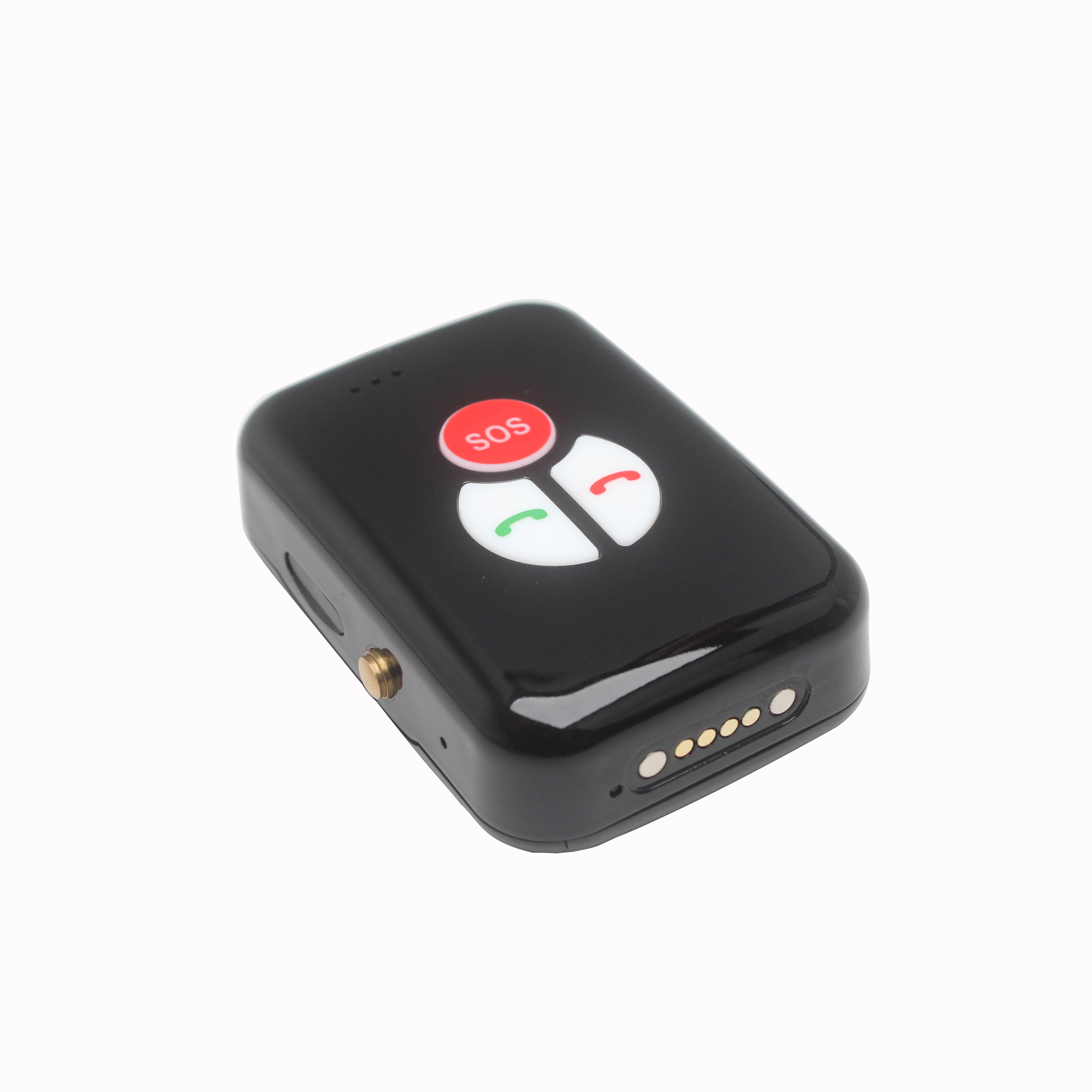

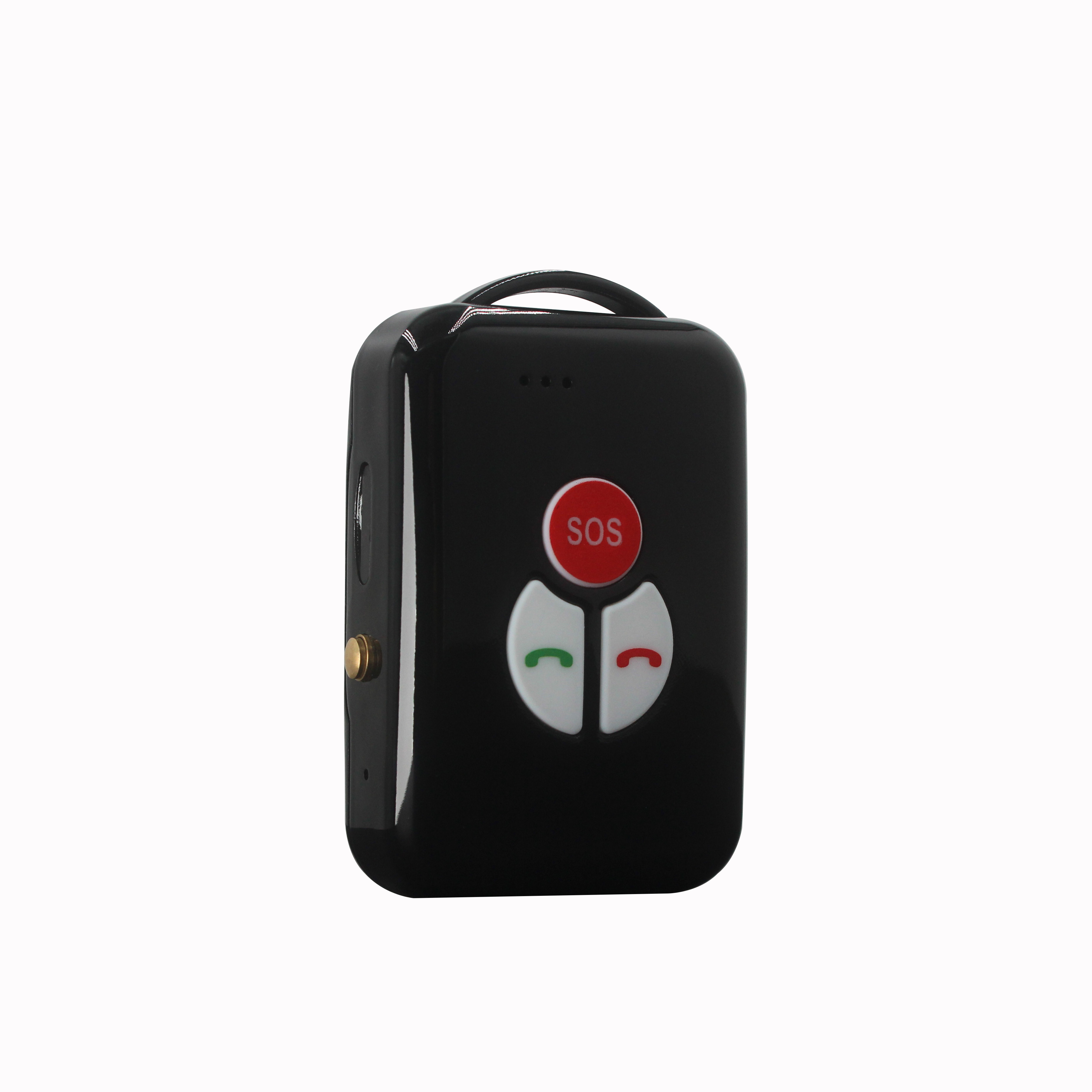

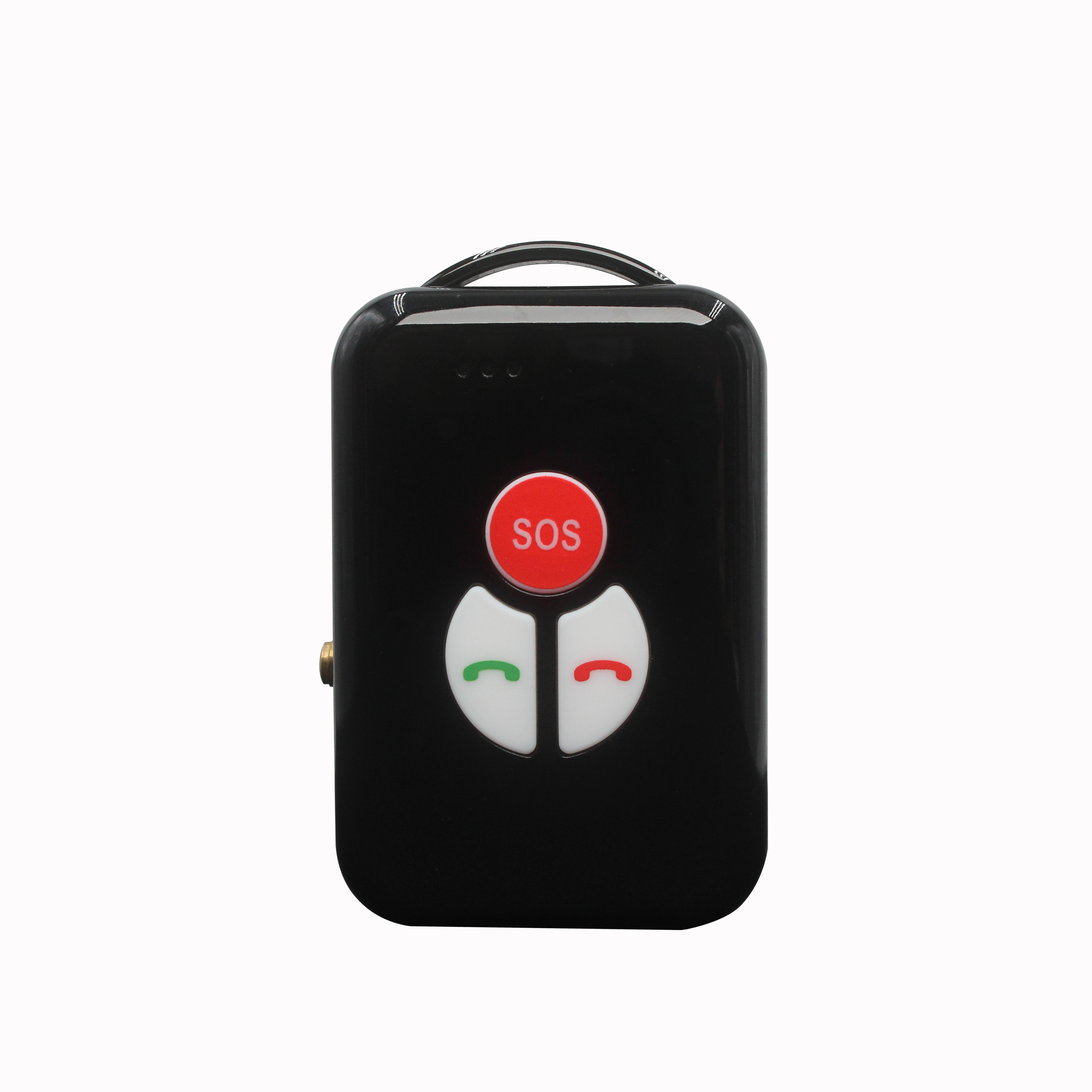

P02L Smart Walkie-Talkie Tracker

Dim.

68.7*43.9*20.2mm

Network

LTE / GPRS

Frequency

GSM: 850/900/1800/1900MHz

LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66

Positioning

GPS+Beidou+LBS

Module & Chipset

LTE CAT 1 SIMCom A7670SA

Location accuracy

<5 meters CEP

Average working Current <110mA
Standby Current <3mA (intercom off)

                           <10mA (intercom on)

Charging voltage

5V DC

Operating temp.

-20°C to +60°C

Back up battery

1300mAh,Rechargeable pure cobalt battery

G-sensor

Set SOS number

admin123456 18512345678

set SOS number

Working mode

md123456 x

x=0: power saving mode

x=1: Perodic mode

x=2: Emmergency mode

x=3 default mode

Exmaple:

md123456 0

md123456 1 20M

md123456 2 60S

md123456 3 30S

interon123456 1/0

interon123456 1 (on)

interon123456 0 (off)

Intercom group

group123456+sapce+Group name

Set a group named Genious:

group123456 GENIOUS

Adjust Volume

vol123456 4

Adjust device volume

Wake-up Alarm

almclock123456 08:05 1111100

almclock+pswd+HH:MM+MonTueWedThuFriSatSun

Alarm wake at 08:05Am on Mond~Friday, alarm off on Satday & Sunday

Check  alarms

check current alarm period.

Family numbers

familynum123456 13800001234

familynum+pswd+space+number1+number2

Suuport to set 2 family number at max.:

Left button: family number 1

Right button: family number 2

Check family number

ckauthnum123456

Check current family numbers

Remove SOS

Remove SOS number

Step counting

step123456 1/0

1: on

0: off

check123456

check device parameters

Device will reply “reset config ok”,then reboot automatically.

IP Setting

adminip123456 www.gps2828.com 701

Set IP/port.

APN setting

APN123456 cmnet

Set simcard APN
